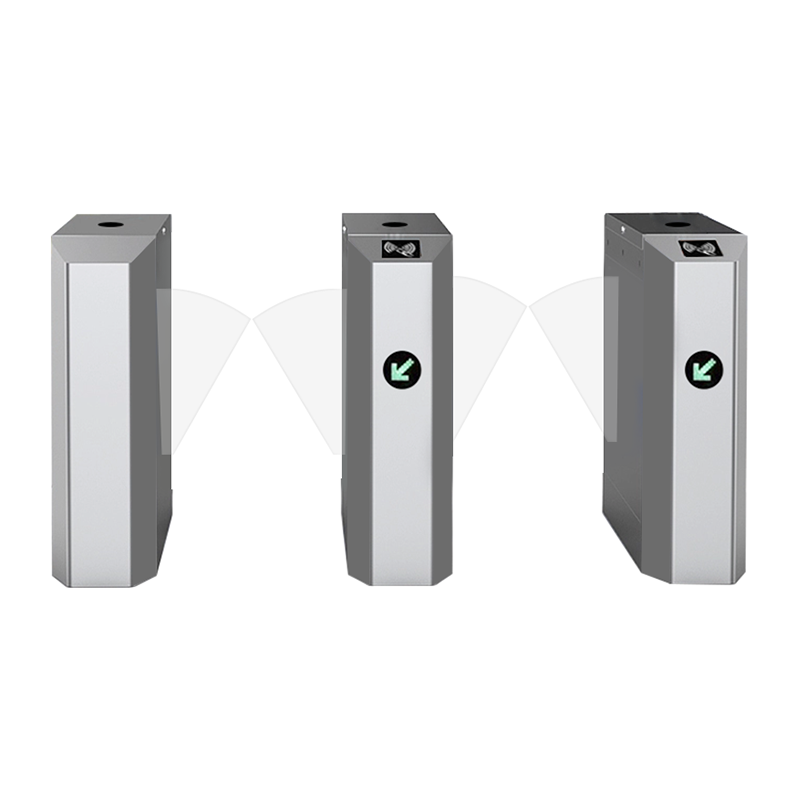

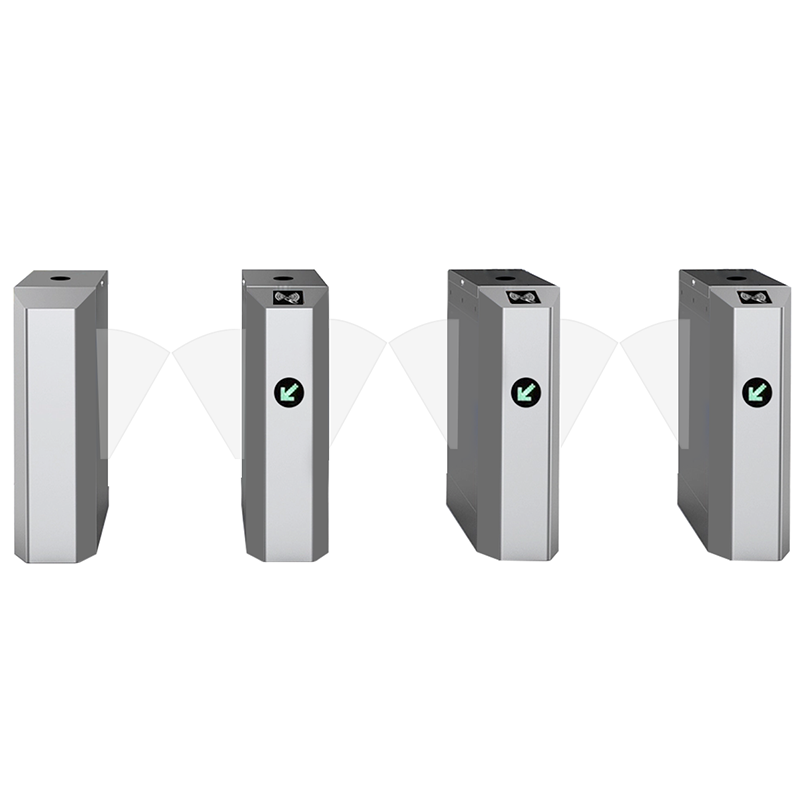

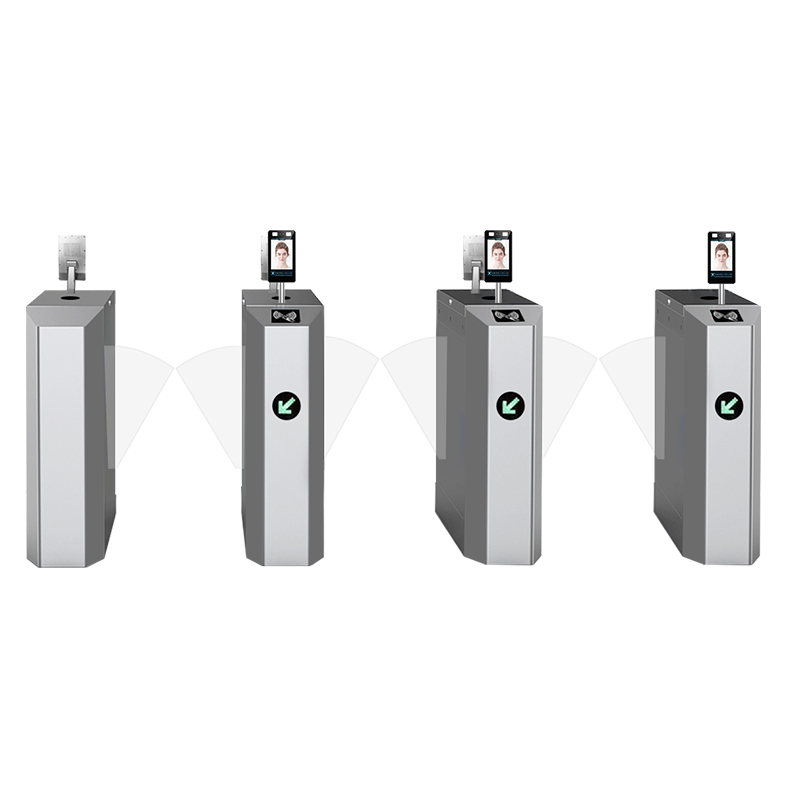

SA-STM-1500S Speed Gates
Features
● Unique Technology: A self-developed mechanical structure combined with a powerful motor ensures long-term stable operation of the swing gate.
● The channel width can be customized according to project requirements.
● Integrated high-sensitivity optical sensors detect visitor approach, ensuring maximum safety for all pedestrians.
● The device includes equipment and circuit testing functions for convenient maintenance.
● The device comes with a built-in traffic indicator.
● The device features automatic protection and automatic reset functions.
● Uniform standard external electrical interfaces allow for connection with various read-write devices.
Application scenarios
Speed gate turnstiles are widely used in office buildings, banks, residential community pedestrian entrances and exits, and other places. They can be easily integrated with your existing control software.
Technical Parameters
| Technical parameters | |
| structure:SUS304Stainless steel housing | channel width：750MM(maximum1000MM) |
| Swing wings; colorless transparent or blue acrylic material | Working environment temperature：-30℃－+60℃ |
| Maximum bearing capacity of swing arm：60KG | humidity;5％-90％ |
| power supply;AC220V/50HZ,110V/60HZ | Mechanical life：More than 2 million times |
| Q drive motor; 24V brushless motor | service life: 8 years |
| speed of passage; 40 persons/min (normally open) 25-35 persons/min (normally closed) |
level of protection; IP45 |
| swing arm door opening and closing time; 0.9S (adjustable) | recognition function; Face recognition. Fingerprint recognition |
| QR code recognition, identity recognition, card authentication, external LED screen, tunnel personnel positioning system, scenic spot ticketing system | |
| Chassis size：1200*280*980mm | |
