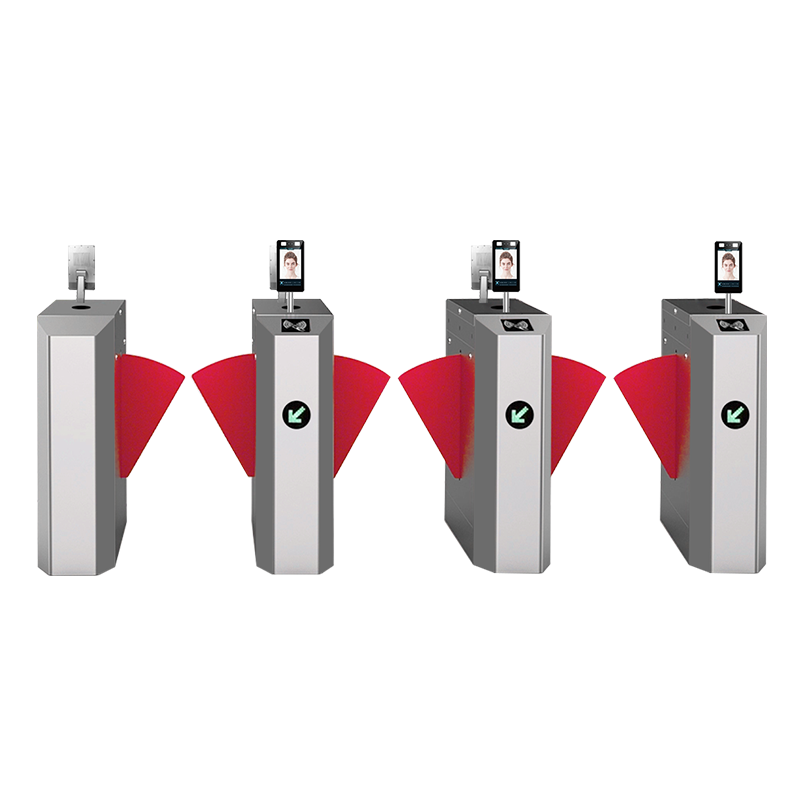

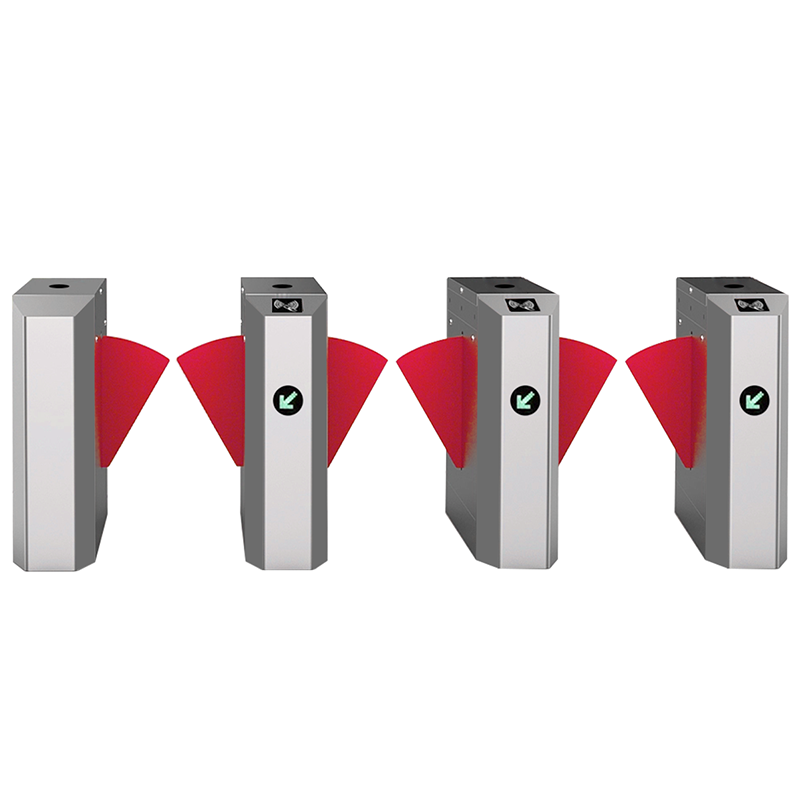

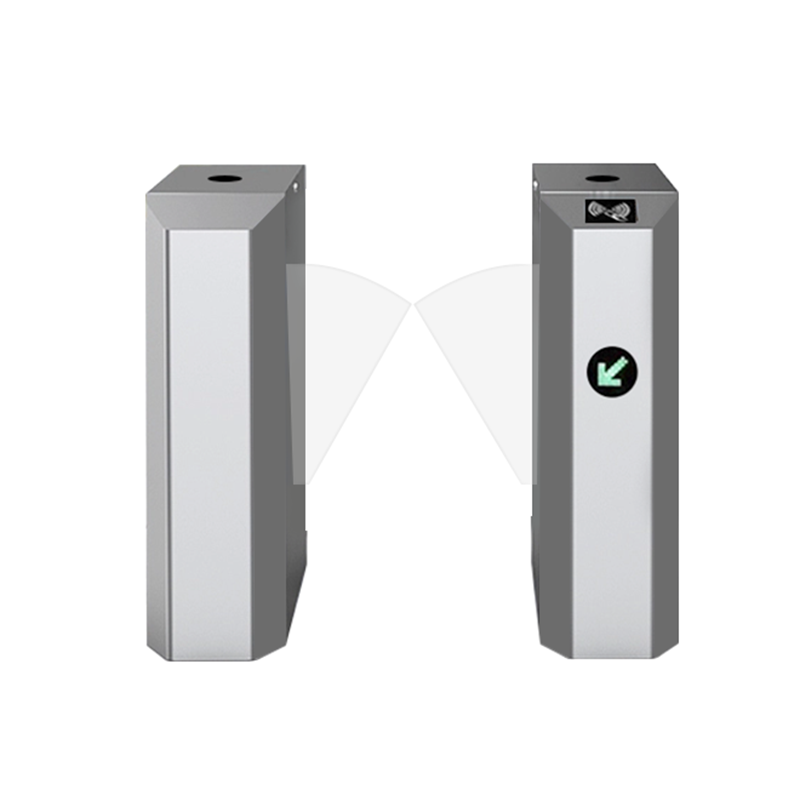

SA-YZ-600 DC Anti-pinch Wing Brake

● Unique Technology: A self-developed mechanical structure combined with a powerful motor ensures long-term stable operation of the gate. ● Self-developed anti-collision motor can prevent impacts, extending the service life. ● Integrated high-sensitivity optical sensors detect visitor approach and feature a mechanical anti-pinch function to ensure maximum safety for all pedestrians. ● The device includes equipment and circuit testing functions, making maintenance convenient. ● The device comes with a built-in traffic indicator. ● The device features automatic protection and automatic reset functions. ● Uniform standard external electrical interfaces allow for connection with various read-write devices.


Details

Features

● Unique Technology: A self-developed mechanical structure combined with a powerful motor ensures long-term stable operation of the gate.
● Self-developed anti-collision motor can prevent impacts, extending the service life.
● Integrated high-sensitivity optical sensors detect visitor approach and feature a mechanical anti-pinch function to ensure maximum safety for all pedestrians.
● The device includes equipment and circuit testing functions, making maintenance convenient.
● The device comes with a built-in traffic indicator.
● The device features automatic protection and automatic reset functions.
● Uniform standard external electrical interfaces allow for connection with various read-write devices.

Application scenarios

Direct current anti-pinch wing gates are widely used in ports, clubs, subway stations, hotels, intelligent buildings, high-end residential areas, and more.

Technical Parameters

Technical parameters
Power Supply:AC220V/50HZ, 110V/60HZ Bar Length:250MM
Drive Power Supply:AC24V Communication Interface,Customizable (Standard version does not have an interface)
Operating Temperature:-15℃ to +60℃ Structure:Frame structure, stainless steel casing
Relative Humidity:No condensation ≤95% Opening Direction,Supports unidirectional and bidirectional (optional)
Operating Environment:Suitable for both indoor and outdoor use Operating Current:<3000mA
Passage Speed:<30 per minute Passage Width:<550mm
Barrier Rotation Angle:0.5S Service Life:>5 million times
Chassis Size:1200*300*980mm
