Indoor guide screen
Product profile

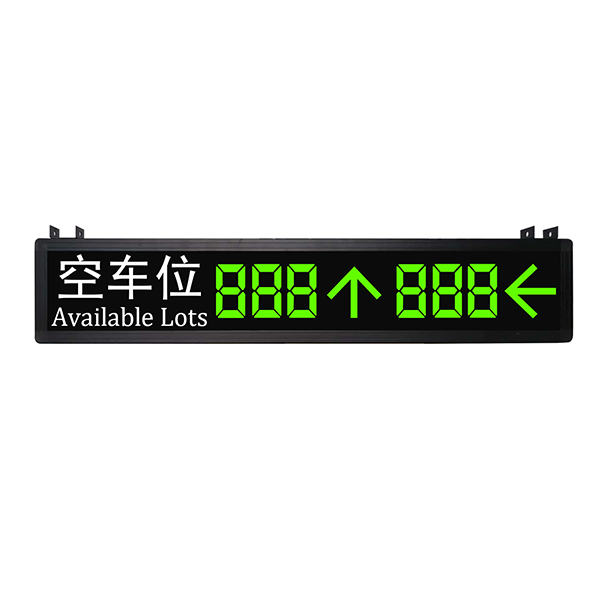

he indoor guide screen is composed of high brightness LED module, drive unit, bracket and other parts. Installed at important road crossings inside the parking lot. Receive the output information of the centralized controller, display the number of empty cars in the area in the form of numbers, arrows, etc., guide the owner to quickly find the empty parking space, and ensure the smooth parking lot and the full use of the parking space.
Product features
1) The guide screen adopts aluminum profile + plexiglass shell, simple and atmospheric appearance;
2) The guide screen adopts low power consumption design, with short circuit, overvoltage, overcurrent and overload protection;
3) Multi-directional display content support, to meet the use of various intersections.
4) Indicators are clearly discernible, the bead luminous intensity is high, far visible distance, wide perspective;
5) Two-color highlight LED light beads, a variety of display mode is optional.
6) Mobile phone APP debugging address and arrow, debugging is convenient and quick.
7) Standard RS485 interface access to the nearest video detector, convenient wiring.
8) Multi-direction guidance: "", "↖", "", "↗", "" and other multi-direction arrows can be set.
9) Red and green double colors display the number of remaining parking Spaces, which can customize the number of warning to be displayed. Green when it is greater than the number of warning, and red when it is less than the number of warning.
Technical Parameters
| model: | WBP-IA 31-1 (unidirectional) | working temperature: | -30℃ ~ +65℃ |
| size: | One-way, 650 * 183 * 56 mm | service voltage: | AC220V±10 |
| 1 bidirectional 1030 * 183 by 56 mm
|
maximum power dissipation: | 20 W (one-way) | |
| Three-way 1410 * 183 * 56mm | ambient humidity: | 5％--9 5％ RH | |
| Appearance material: | Black aluminum alloy outer frame | communication mode: | RS485 Bluetooth (debugging for use)
|
| Empty car seat part | Screen-printed LED white glow word was used | communication distance: | Rs485≤ 300m
Bluetooth Vacation 5M |
| illuminant: | Red and green double-color LED lamp beads | Pixel point density | 44,321 points / ㎡ |
| Point spacing | 4.75 mm | resolution ratio | 80 * 32 = 2,560 points |
| life length | At 100,000 hours | Drive way | constant current |
Product installation
Picture of profile crane:

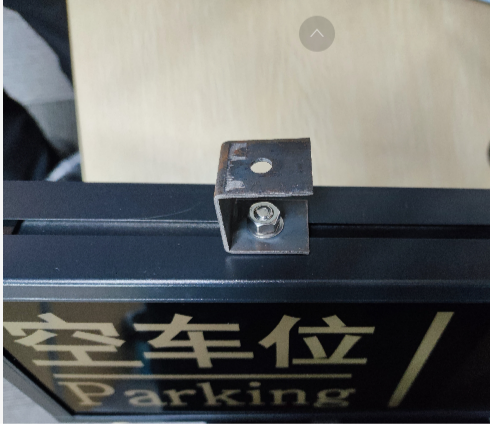

The lifting accessories of the guide screen are composed of two U-type cranes, and the size of the U-type cranes is 30 * 30 * 40mm.
Fixed method:

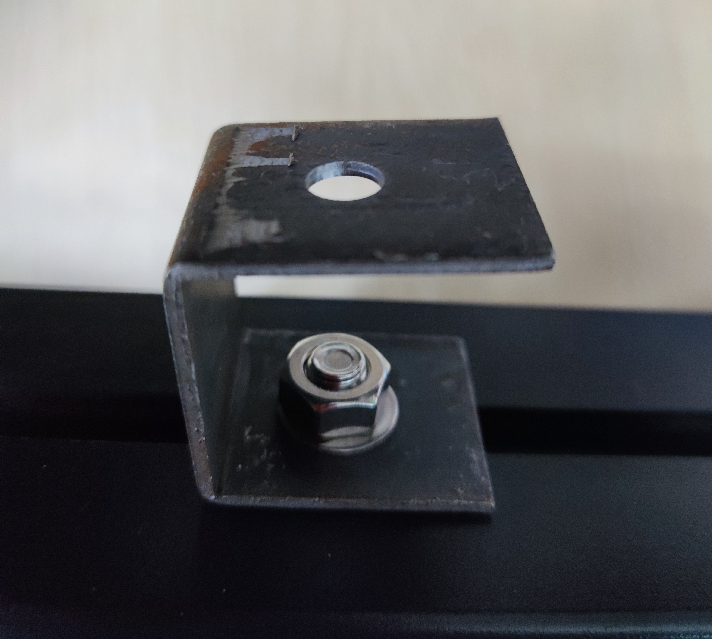

1) The main operation is to screw a U-shaped crane into the profile groove,
(2) Use the matching M8 screw into the small hole on the crane piece, and fix the U-shaped on the guide screen track.
(3) The upper end is connected to the wire or KBG tube to the fixed point.

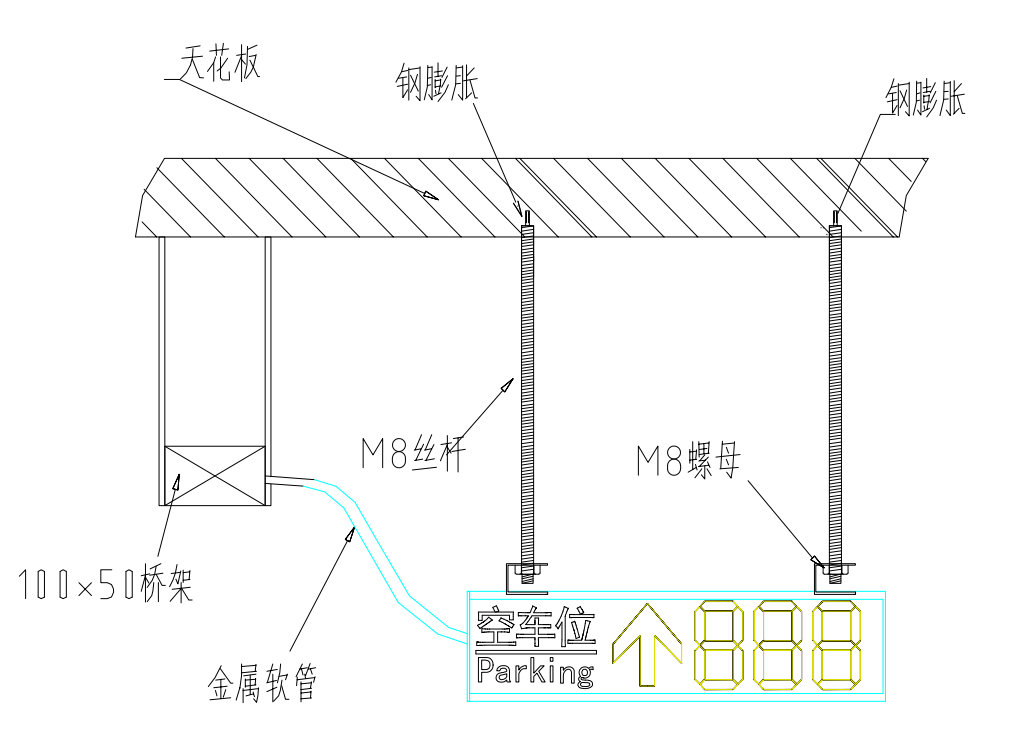

The indoor guide split screen is installed by ceiling lifting mode, and the power line and signal line are directly introduced from the bridge to the guide screen box by using metal hose. The installation diagram is shown in Figure
Wiring schematic diagram

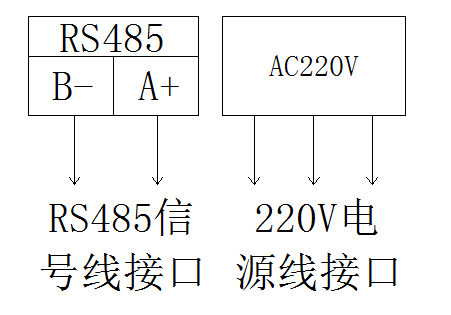

Wiring schematic diagram
1) Non-system maintenance personnel shall not operate the system equipment at will to prevent misoperation and cause system failure.
2) After the system configuration file is completed, please make a backup in case it cannot be restored after damage and reduce the maintenance workload.
3) When replacing the faulty equipment, please disconnect the power of the equipment and operate to prevent the equipment from burning during the operation.
4) When the system cannot work normally, please check the power supply of each equipment first and whether it is mistakenly turned off.
-
