Parking space guidance system

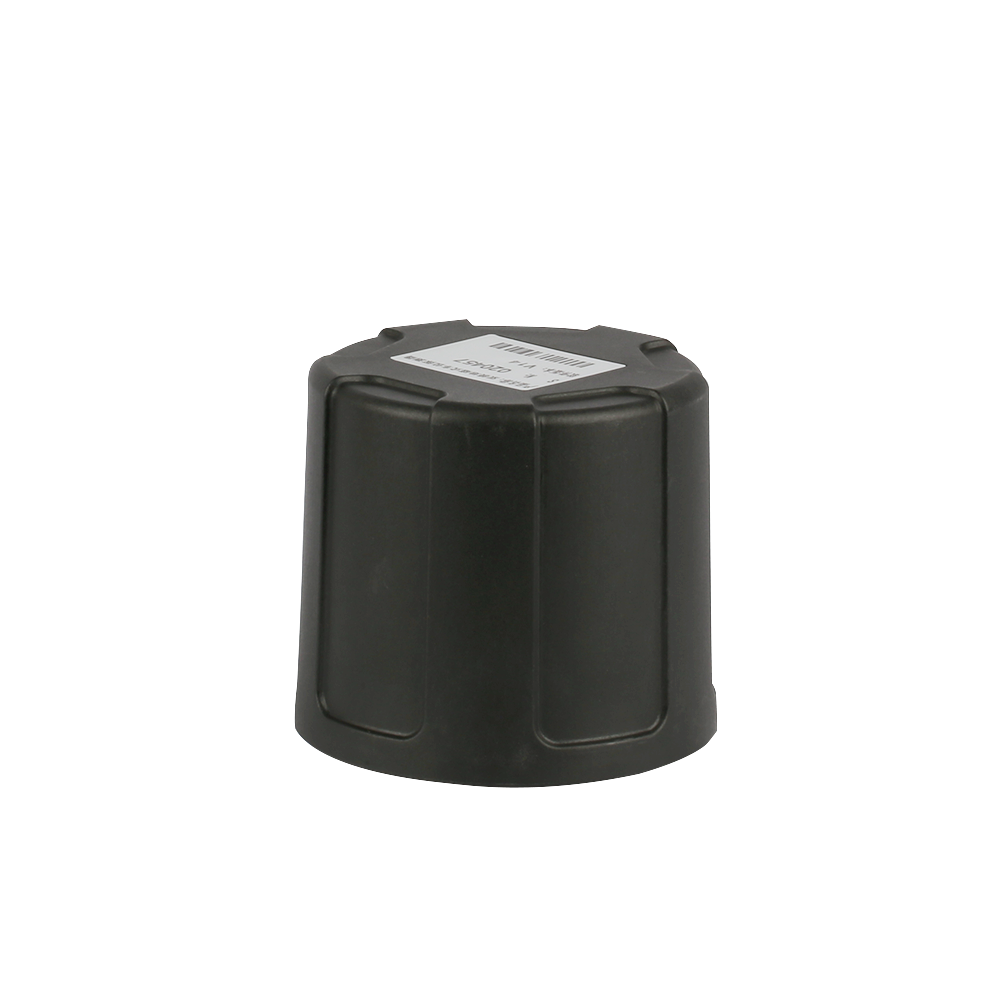

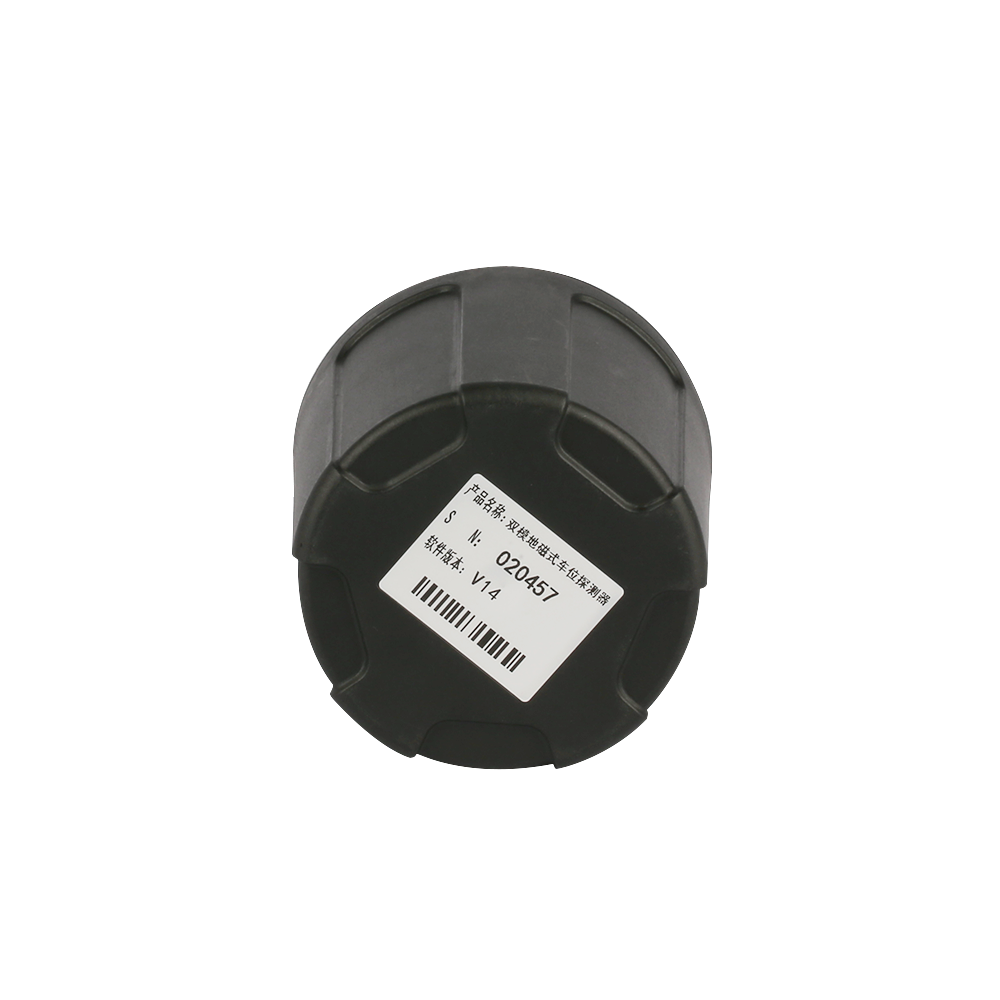

Product profile
Dual-mode geomagnetic parking detector is an important part of outdoor parking guidance system. Dual sensing technology, one-character / non-shape vertical parking space accuracy of 9 9%. The protection level is as high as IP68, installed in the middle of the parking space, with the characteristics of waterproof, anti-snow, anti-corrosion, anti-pressure and anti-interference ability, can effectively deal with the harsh environment of outdoor parking space.
Product features
1) Using wireless microwave radar and geomagnetic dual judgment mode, advanced recognition algorithm, the detection accuracy of more than 9 8%;
2) Strong anti-interference ability, underground rail transit, cellar cover, base station, metal bracket sunshade, no impact;
3) Wireless communication, without wiring trouble, low construction difficulty;
4) The geomagnetic parking space detector is small in size and has little damage to the ground of the parking space;
5) High-strength shell design, with the characteristics of pressure resistance, anti-corrosion, long service life;
6) The protective design of high IP68 can effectively respond to various harsh environments of outdoor parking space.
7) Mobile phone APP Bluetooth debugging, convenient and simple. Maintenance convenience.
Technical parameters
| product model: | WBP- T 10 M | working voltage: | 2.5~3. 6V (Built-in battery) |
| specification and dimension: | Φ 113× 101 mm | battery capacity: | 38 000mAh |
| sheathing material: | Black, PC + ABS + PA66 | average current: | < 50 uA |
| levels of protection: | IP 68 | Battery life: | Can work for more than 5 years |
| net weight: | 8 60g | communication mode: | NB-IoT |
| way to install: | Ground buried type | communication distance: | Within the range of the base station communication |
| working temperature: | - 30℃～+85℃ | Detection accuracy: | ≥9 8% |
| resist compression: | 20t | ambient humidity: | 90% RH (no condensation) |
| Wireless upgrade: | support | Mobile phone APP debugging | support |
Product installation

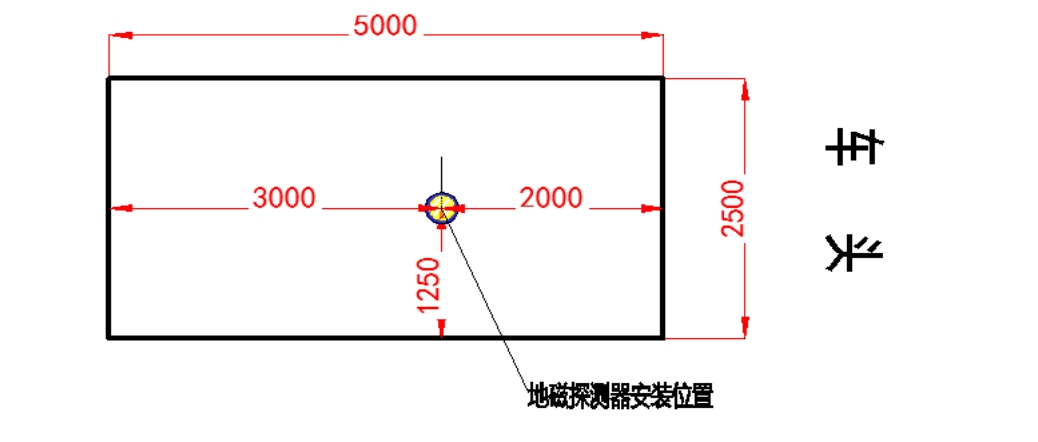

Detector installation position: For the standard parking space of 2500 * 5000mm, the geomagnetic detector is installed at the front position; as shown in the figure below:

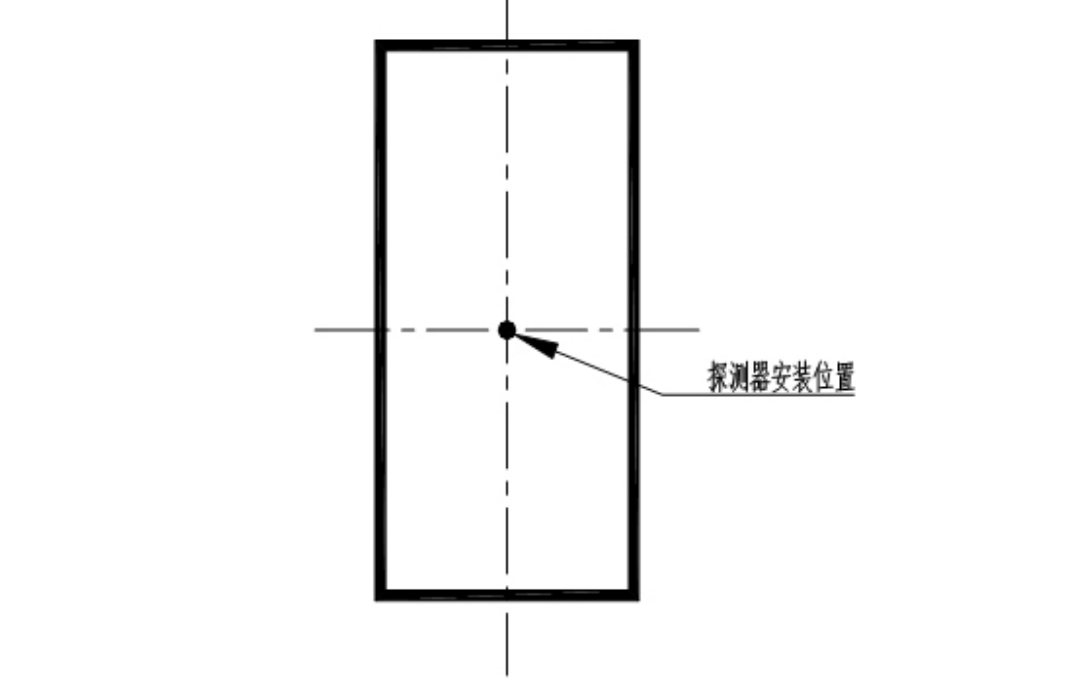

For other non-standard parking spaces, geomagnetic detectors are installed in the middle of the parking space, as shown in the figure below:

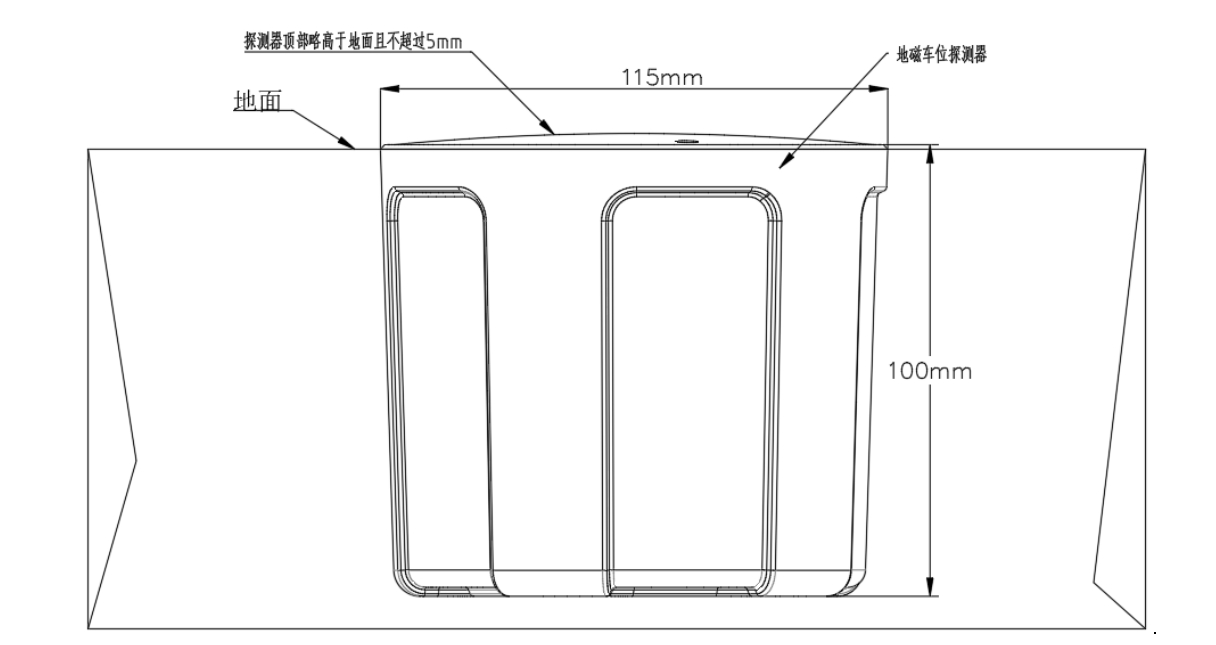

The installation method is shown in the following figure:
Schematic diagram of geomagnetic parking detector
Use and maintenance
1) Non-system maintenance personnel shall not operate the system equipment at will to prevent misoperation and cause system failure;
2) After the system configuration file is completed, please make a backup to prevent it cannot be restored after damage and reduce the maintenance workload.

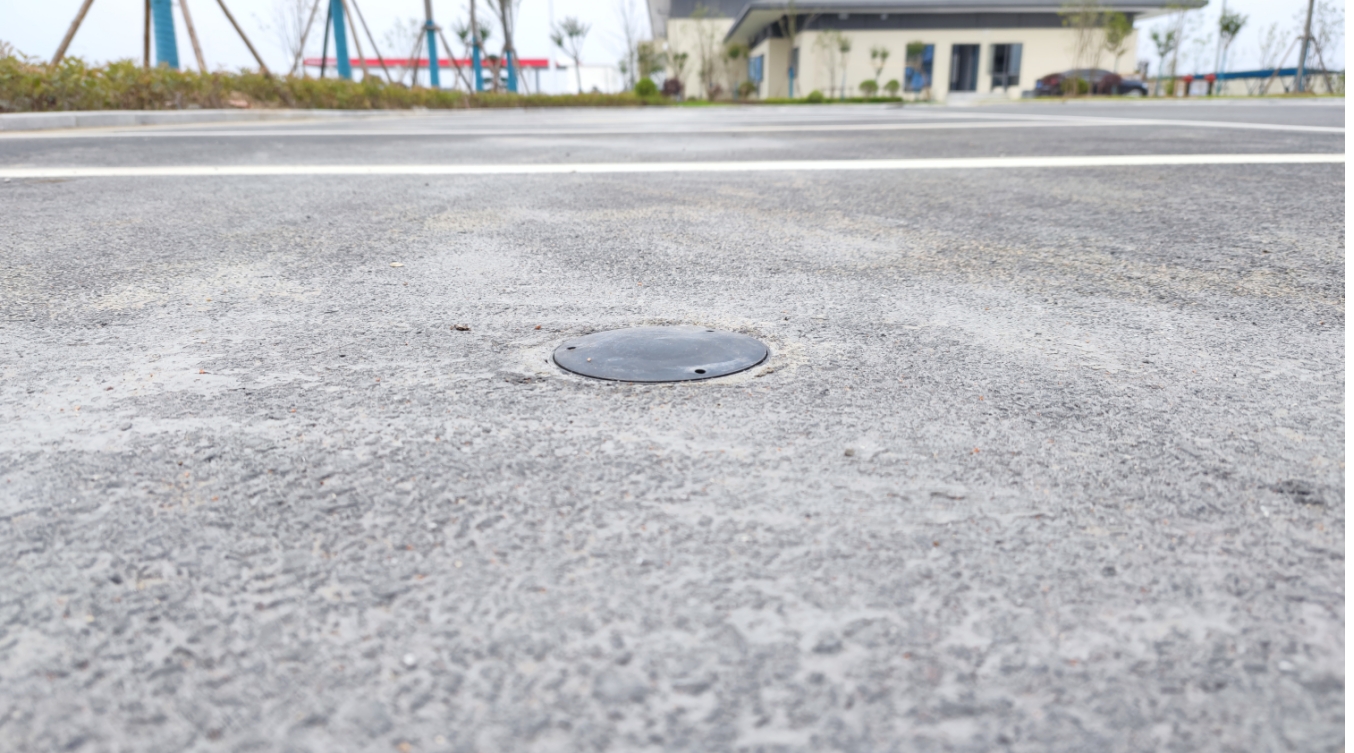

Example diagram of the site installation
