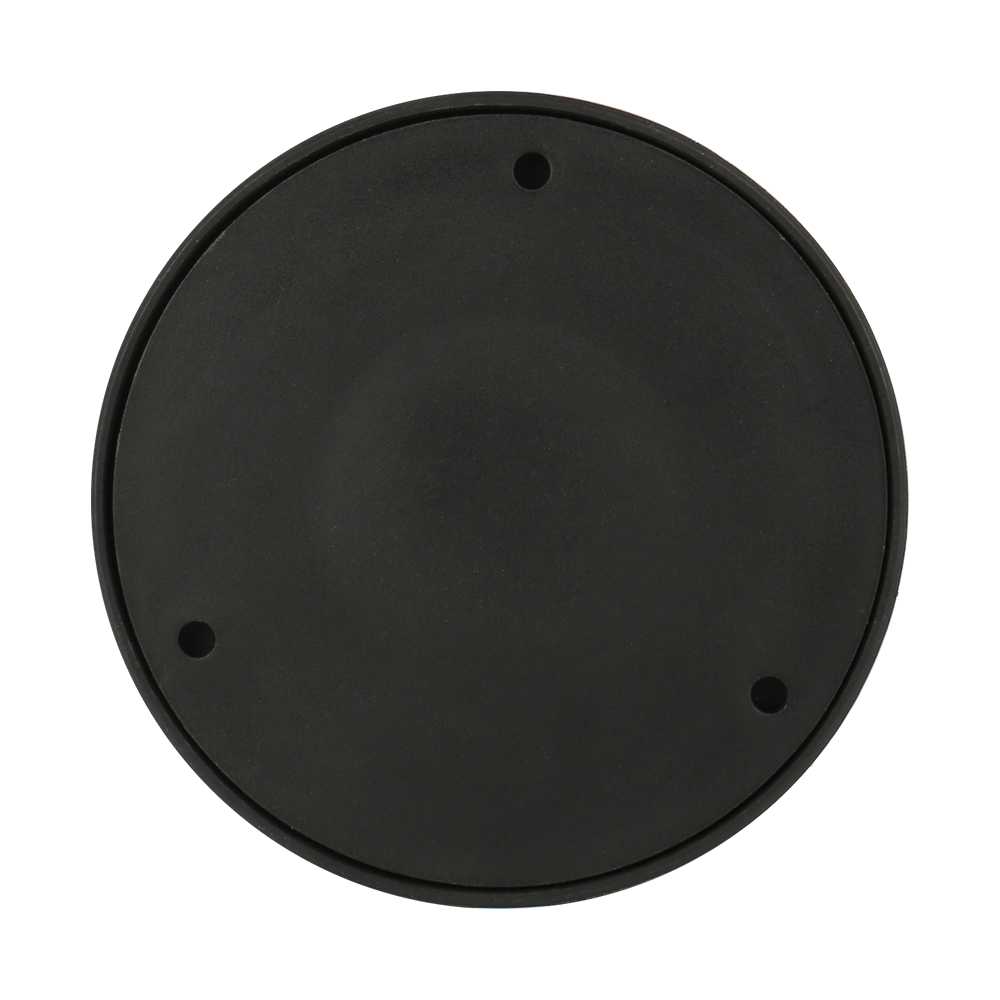

Table type dual mode geomagnetic parking detector
Product profile
Dual-mode geomagnetic parking detector is an important part of outdoor parking guidance system. Dual sensing technology, one-character / non-shape vertical parking space accuracy of 99%. The protection level is as high as IP68, installed in the middle of the parking space, with the characteristics of waterproof, anti-snow, anti-corrosion, anti-pressure and anti-interference ability, can effectively deal with the harsh environment of outdoor parking space.
Product features
1) Advanced recognition algorithm and anti-interference design, with the detection accuracy of up to 99%;
2) Direct screw positioning and installation of the parking space, to avoid the trouble of drilling, low construction difficulty;
3) The shape ruler of the geomagnetic parking space detector is suitable, which causes little damage to the ground of the parking space;
4) High-strength shell design, with the characteristics of pressure resistance, anti-corrosion, long service life;
5) The protection design of high IP68 can effectively deal with various harsh environments of outdoor parking Spaces.
6) Mobile phone APP Bluetooth debugging, convenient and simple. Maintenance convenience.
Technical parameters
| product mode： | WBP- T10S | working voltage： | 3.4V-3.6V（内置电池） |
| specification and dimension： | Φ175×40mm | battery capacity： | 18000mAh |
| sheathing material： | Blak PC+ABS | average current： | <50uA |
| RM： | Dual detection of geomagnetic + radar | reaction time： | 10S内 |
| levels of protection： | IP68 | IP68 Battery life： | 3-5年 |
| radar frequency： | The 24 GHZ millimeter-wave radar Geomagnetic sensor | Geomagnetic sensor： | 3-axis digital geomagnetic sensor
|
| Radar distance： | 10-80cm | Detection group： | automobile |
| net weight： | 645g | communication mode: | RF470MHz @ 10kbps |
| way to install： | Surface installation | communication distance： | Control for 100m with the outdoor area
|
| working temperature： | -40℃～+85℃ | Detection accuracy： | ≥99% |
| resist compression： | 20t | ambient humidity: | ≤90%RH(no condensation) |
| Wireless upgrade: | support | Upgrade way | Bluetooth upgrade |
Product installation
Detector installation position: For the standard parking space of 2500 * 5000mm, the geomagnetic detector is installed at the front position; as shown in the figure below:
For other non-standard parking spaces, geomagnetic detectors are installed in the middle of the parking space, as shown in the figure below:
Use and maintenance
1) Non-system maintenance personnel shall not operate the system equipment at will to prevent misoperation and cause system failure;
2) After the system configuration file is completed, please make a backup to prevent it cannot be restored after damage and reduce the maintenance workload.
