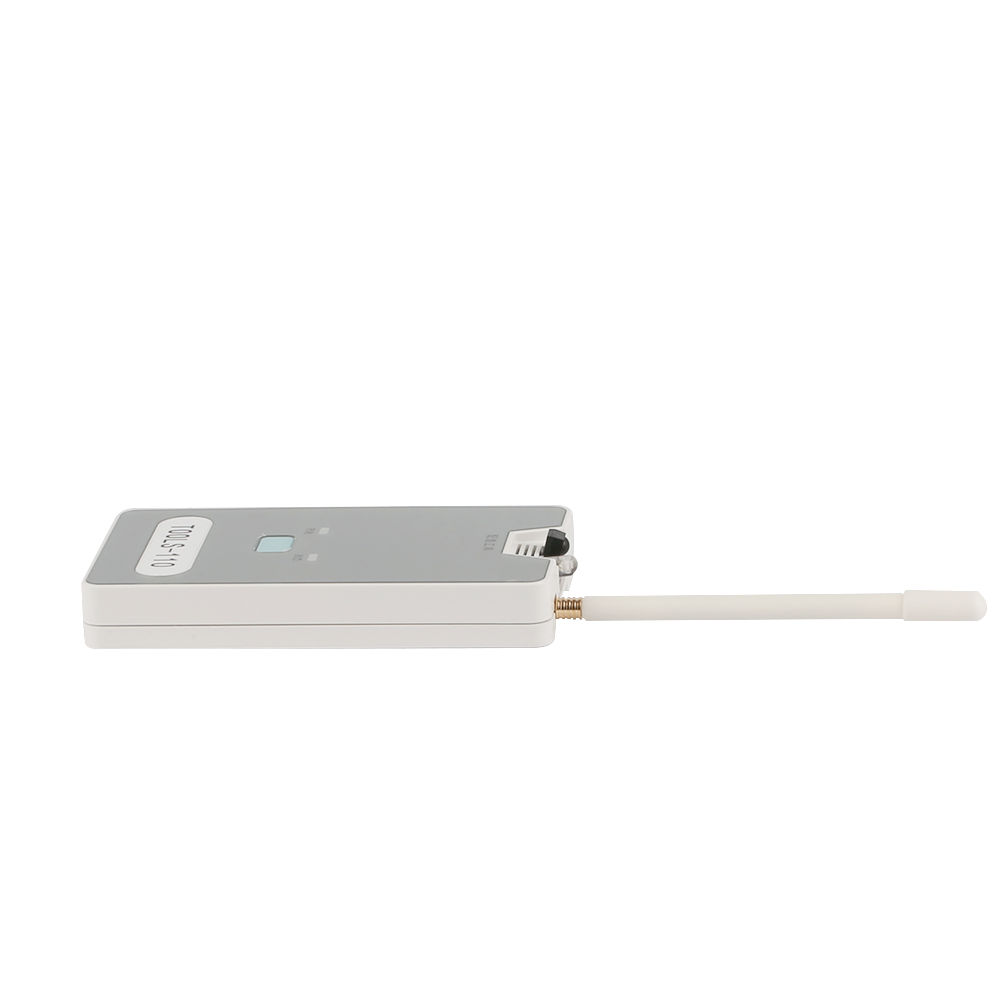

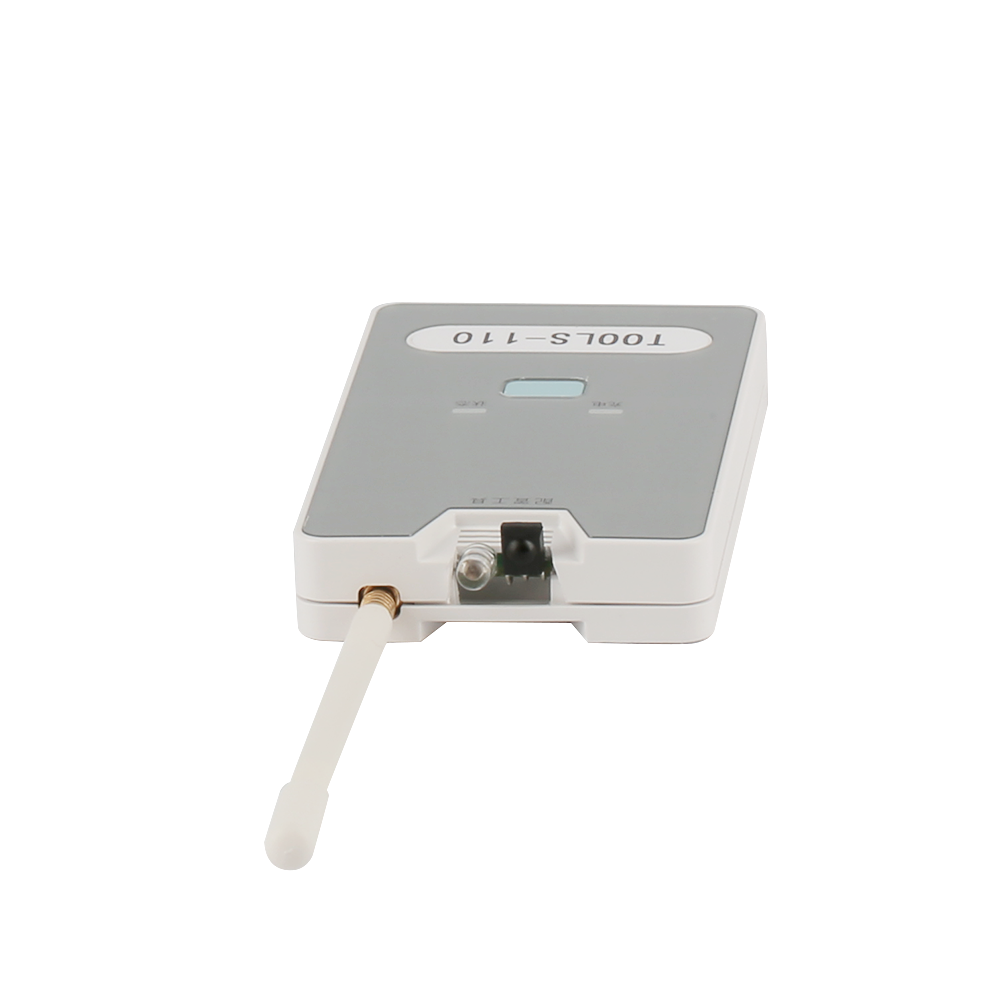

Parking space guide and configuration tool
Product profile
The parking space guide configuration tool is composed of the driving unit, Bluetooth module, infrared module and other parts. Using 5V DC power supply, Bluetooth communication mode, and using infrared sensor for data configuration for ultrasonic probe; apk software is only suitable for Android version of mobile phone.
Product features
1) Small and portable, using Bluetooth + infrared dual communication mode;
2) Silver white case, removable antenna, full of technology;
3) Bluetooth V4.0 standard field debugging distance can be up to 2M;
Technical Parameters
| model： | WBP-T02-T | Working temperature： | -20℃ ~ +65℃ |
| working voltage: | 5V | communication mode： | Bluetooth / infrared
|
| size： | 74*24*15 | power dissipation： | ＜0.5W |
| Infrared distance： | ≤1.5m | weight： | 15g |
| Mobile phone requirements | AAndroiSystem mobile phone
(Above the Android 9 system) 上） |
Product installation
For debugging of front detectors on different fields; software is installed in Android mobile phone, red parking guide configuration tool and detector within 1.5m, mobile phone and tooling at 10.0±2.0m.
Use and maintenance
1) Non-equipment maintenance personnel shall not disassemble the equipment at will to prevent misoperation and cause system failure.
2) If the equipment cannot work normally, please check the APP version and then contact the after-sales service.
