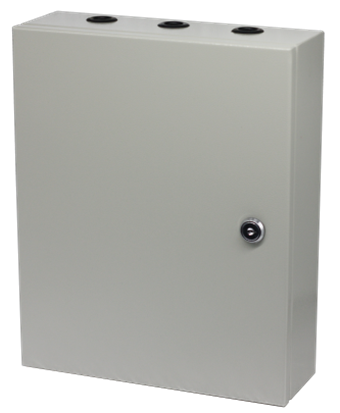

Indoor centralized controller
Product profile
The indoor centralized controller is the core of the whole system, and is the collection and control center of the whole intelligent parking guidance system. Through the real-time data update of the parking guidance screen, the guidance function of the vehicle is realized. An indoor centralized controller can control up to 25 indoor area controllers (or node controllers).
Product features
1) Using the international advanced 32-bit ARM processor, full industrial grade design, to ensure the stability and reliability of products;
2) The whole system controller can be upgraded remotely, convenient for system maintenance and upgrade, always to meet the needs of users;
3) The equipment has the functions of short circuit, overvoltage and overload protection to prevent the electrical damage to the relevant equipment caused by wiring errors during construction;
4) The overall use of industrial design, after strict electrostatic, lightning and surge, group pulse and other testing, effectively ensure the reliable use of equipment;
5) The indoor centralized controller can manage up to 256 zones (that is, the parking space can be divided into 256 areas and associated to the guide screen);
6) The partition information is not affected by the physical location of the detector and display installation, and can be associated with any detector and the display;
7) After the associated information is downloaded, the associated information is automatically saved and run correctly independently from the computer.
8) Support for remote upgrade.
Technical Parameters
| product model | WBP-K02M | working voltage | AC 110～240V |
| specification and dimension | 320*260*90 mm | working temperature | - 30℃ ~ + 75℃ |
| et weight | 4.2KG | communication mode | Ethernet, CAN |
| sheathing material | galvanized sheet | communication interface | Ethernet: RJ 45 |
| power dissipation | ≤ 2 W | Communication object | CAN: indoor node / area controller
Ethernet: a system management platform |
| ambient humidity | 90% RH (no condensation) | communication distance | CAN≤ 10 00m |
Product installation

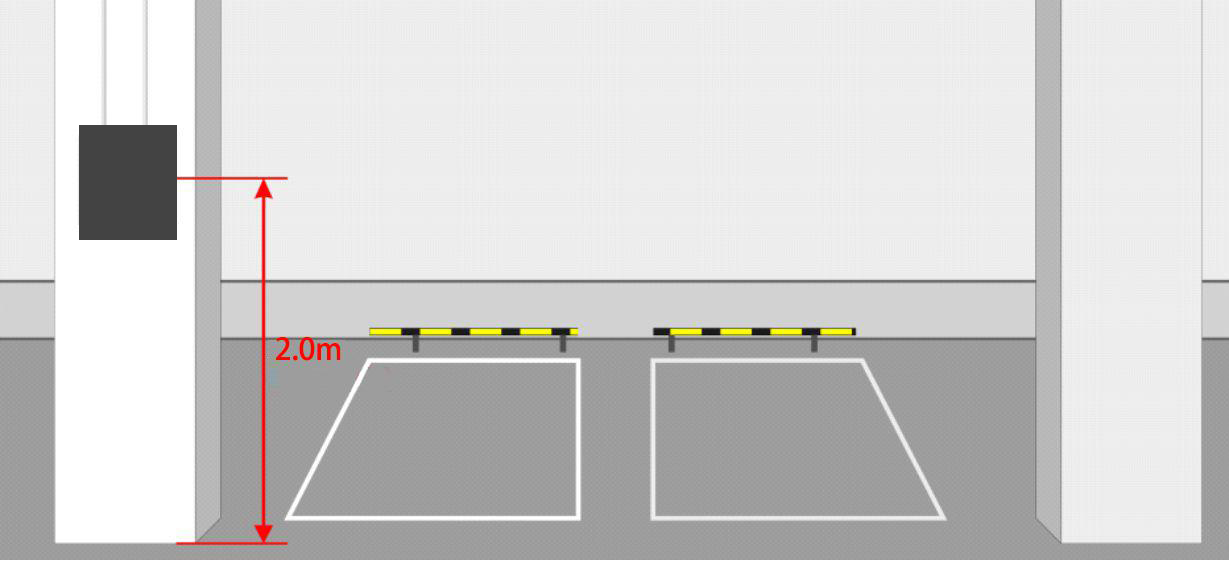

Indoor centralized controller is generally installed on the column or wall, the recommended installation height of 2 meters and above. The installation diagram is shown in Figure 4.1:
Use and maintenance
1) Non-system maintenance personnel shall not operate the system equipment at will to prevent misoperation and cause system failure.
2) After the system configuration file is completed, please make a backup to prevent it cannot be restored after damage.
3) When replacing the faulty equipment, disconnect the power to prevent the equipment from burning during operation.
4) If the system cannot work normally, please check the power supply of each equipment and whether it is turned off by mistake.

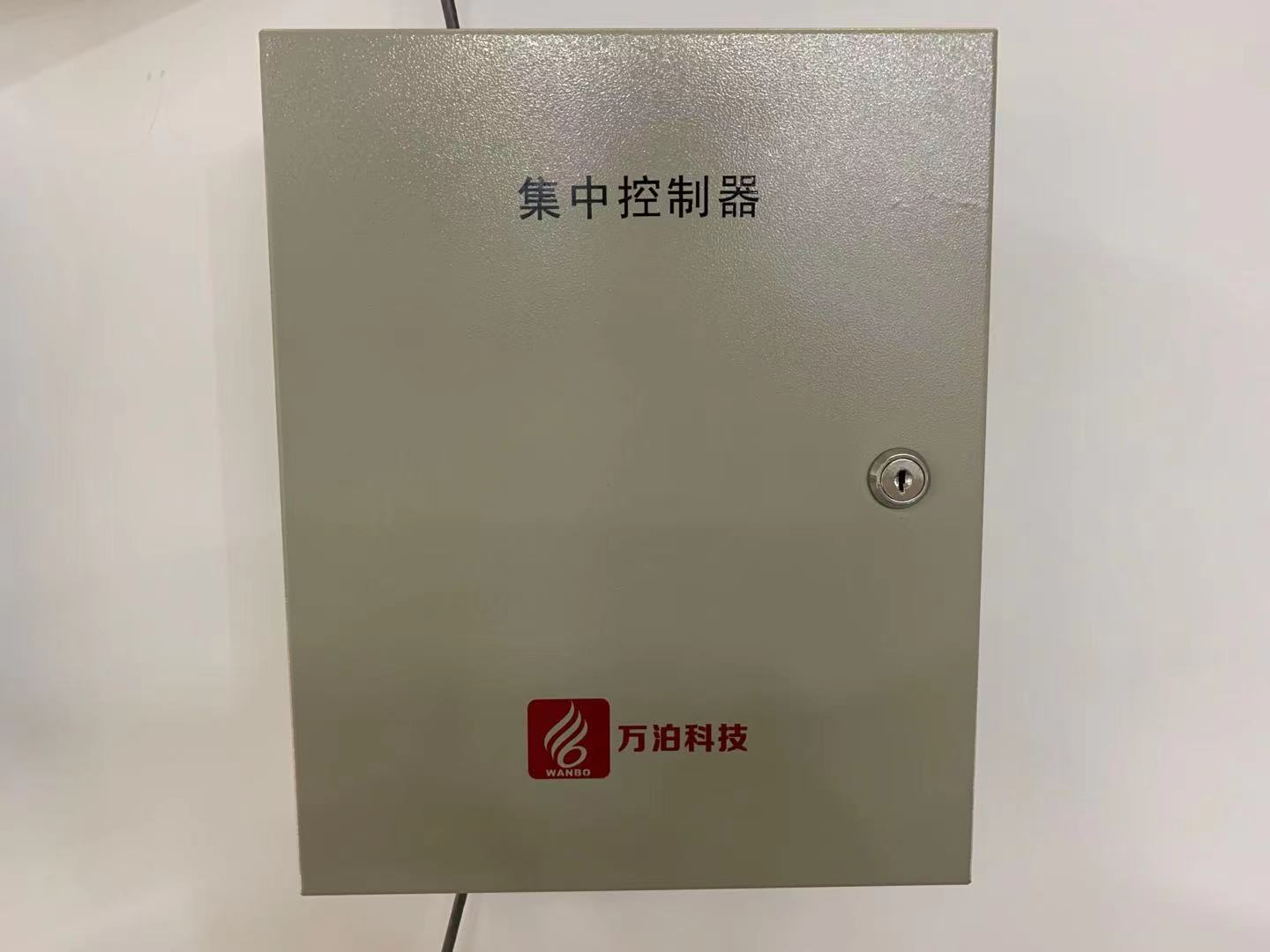

Example diagram of the site installation
-
