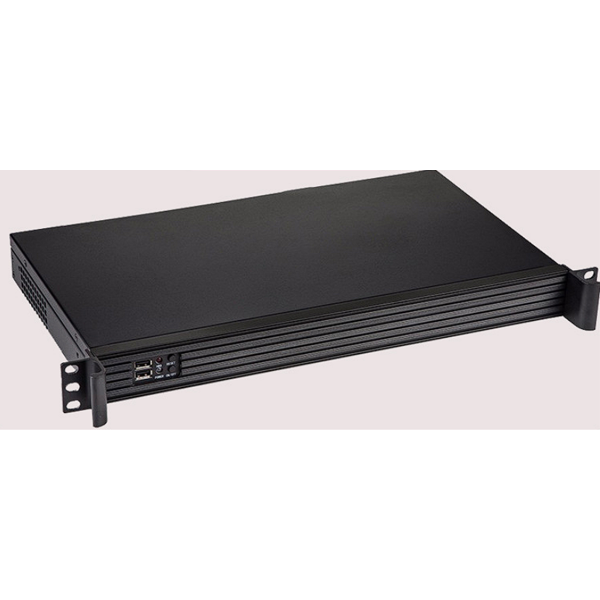

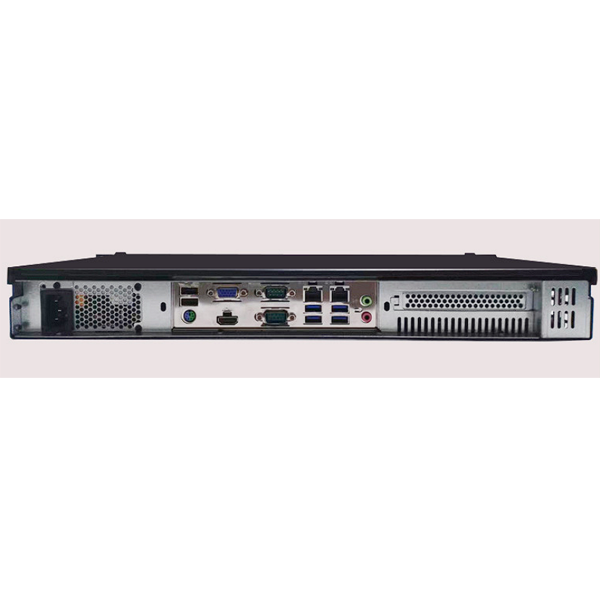

Video centralized controller of the parking space guidance system
Product profile
The video centralized controller is the calculation and control center of the parking guidance system, which provides powerful safe, reliable and intelligent technical support for the parking guidance system.
The video centralized controller can replace the dedicated server, summarize all kinds of devices guided by the parking space and the video centralized controller under the same network. The video centralized controller summarizes the information of the detector equipment and processes it, issues the processed data to the guide screen, and provides the reverse car search system for the query terminal
Product features
1) Adopt high-quality hardware to improve the reliability and stability of software operation and reduce the system failure rate.
2) Configure a real-time multitask thread to respond to and process software events in real time.
3) Has a strong environmental adaptability, can resist high temperature, cold and humidity, and has the characteristics of dust, corrosion, vibration and impact resistance.
4) The security ability to protect its internal data and external communications.
5) Pre-install the parking space guidance system software to improve the timeliness of the on-site installation.
6) Strong performance, replacing the traditional professional-level server in the parking space guidance system level, saving costs.
Technical Parameters
| model: | WBP- K04M | working voltage: | AC220V±10% |
| system: | Linux system | Appearance material: | galvanized steel plain sheet |
| Body size: | 428*250*44.5 mm | net weight: | 3 KG |
| working temperature: | 0℃ ~ +60℃ | humidity: | 10%~90% (no condensation) |
| way to install: | Rack type | source: | 250W power supply |
Product installation
The parking guide video centralized controller is generally arranged in the machine room or intelligent weak current room. The video centralized controller should provide 220V power supply and downstream network cable to the parking guide equipment.
Use and maintenance
1) Non-system maintenance personnel shall not operate the system equipment at will to prevent misoperation and cause system failure.
2) After the system configuration file is completed, please make a backup to prevent it cannot be restored after damage.
3) When replacing the faulty equipment, please disconnect the power of the equipment and operate to prevent the equipment from burning during the operation.
4) If the system cannot work normally, please check the power supply of each equipment and whether it is turned off by mistake.
-
